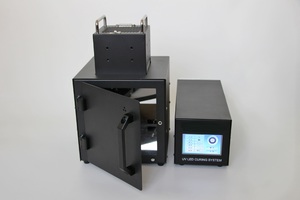

UV CURING OVEN CHAMBER 100-100 - LED CURING SYSTEMS
Product Description and Features
- LED Curing system offering high intensity light curing capabilities.
- Typical cure speeds are between 5-15 seconds.
- High performance.
- Compact, lightweight, and durable.
- Fan or water cooled for temperature management.
- Instant on/off function – no warming up time.
- Very high intensity outputs.
- Suitable for a wide range of manufacturing applications.
- Superior product life span – 20,000 working hours.
- Safe for use in any production environment – ozone free, mercury free.
- No replacement parts required.
- Suitable for use in the Medical Device manufacturing markets.
- Suitable for working with all types of substrates.
- Inter-lock door system
- LED Irradiation Size: 100-100mm
- Outer Size: L-W-H: 230-230-230mm
- Internal size: L-W-H: 210-190-180mm
- Opening size: W-H: 180-180mm
- 1500mW/cm2 @10mm
- UV ovens are available in 365nm, 385nm, 395nm, 405nm options.
- We offer a complete custom design service and UV ovens can be designed to meet your exact specification requirements.
- This model is fan cooled.
- Water cooled for large customised units.
- UV protective glasses.
- All our UV equipment is CE certified. Certificates are available upon request.
Demonstration models available upon request for your evaluation free of charge.
Dedicated UV Curing Equipment Technical Support.
Contact us now for full specification details – firstname.lastname@example.org
