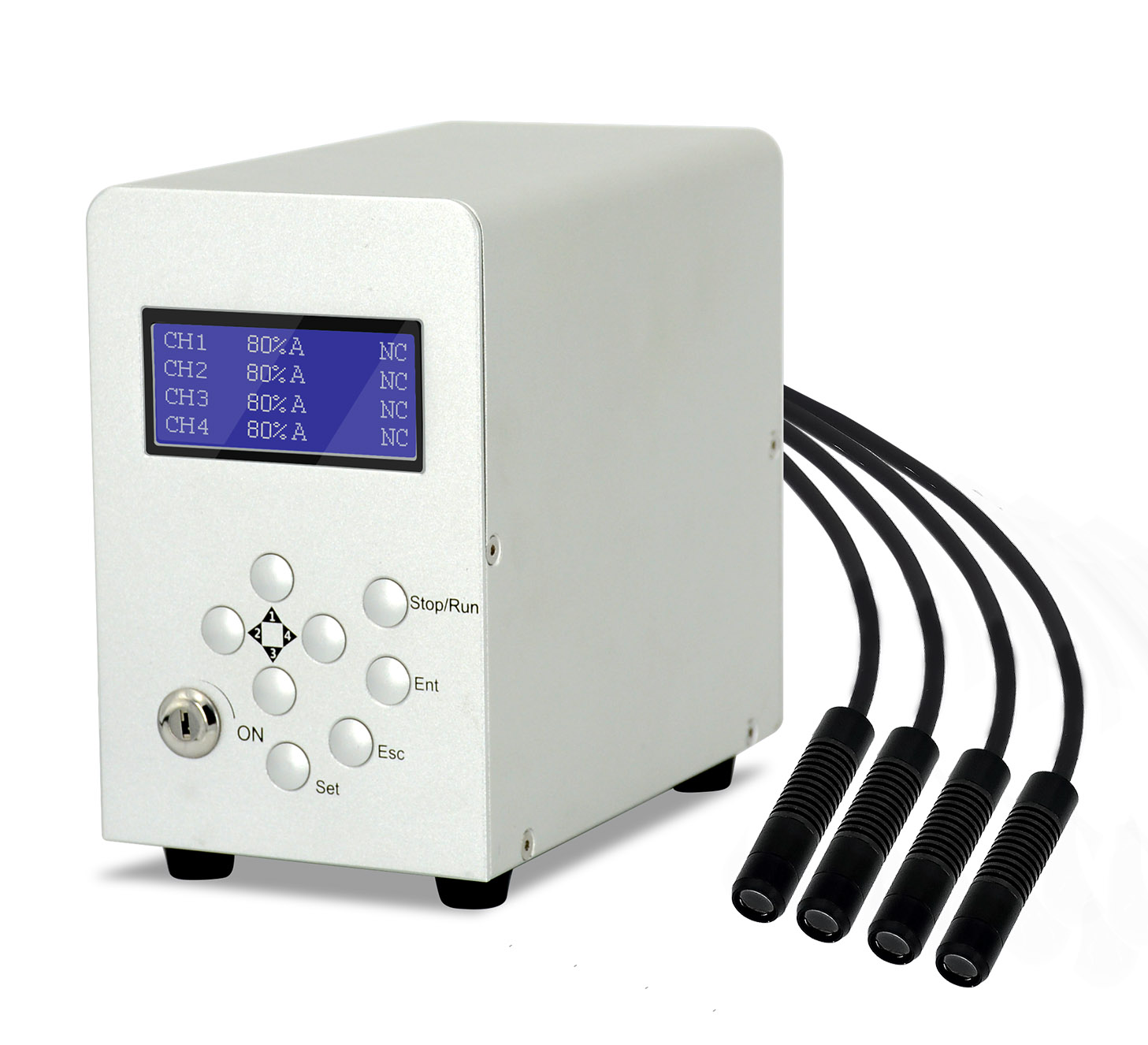

UV LED Light Guide Curing Systems


Product Description and Features

  • High intensity LED, light curing spot lamp system. A range of wavelengths are available for light curing adhesives, encapsulation resins and coatings. Can be configured for manual or automatic use.
  • Easy to use interface with LCD control panel.
  • Individually controlled 1-8 LED light heads. Customised options are available where each light head can be configured for exposure time and intensity.
  • Simple installation.
  • Compact, lightweight and robust design.
  • Timed unit – 0.1 seconds and above. Each LED head can be timed individually if required.
  • Key lock function.
  • Irradiation accuracy can be achieved to +/- 3%.
  • Built in temperature control.
  • Multiple mode / pulse options available.
  • Quality aluminum built unit.
  • Available in multiple wavelengths including 365nm and 395nm.
  • Records the operating times of each light head.


Spot UV LED curing system-controller: Specification


Light head quantity 1-8 unit light heads
UV Irradiation The system allows for individual use of each ligh head. The system allows for use of light heads together.
Irradiation spot Available in 2-20mm
Irradiation distance Refer to light head specification
Drive mode Manual, automatic, foot pedal
Power range 10-100%
Luminous power Refer to light head specification
Cooling method Natural heat release or fan cooling
Supply voltage 100-240V AC / 50/60HZ
Power consumption <50VA
Display LCD Display
Operate Switch settings / Key lock
External Control RS232
Temperature / humidity range Controller: 0-35°C 85% or less (no condensation)


Product Description and Features: LED HEAD

  • LED head with aspheric lens offering high intensity up to 18 w/cm2.
  • The use of the aspheric lens ensures complete uniformity of the irradiance area.
  • Wide range of light head sizes to choose from.
  • Standard light head cable lengths are 3 metres. On special request 5 metre lengths can be produced.
  • Typical cure speeds are between 4-10 seconds.
  • Compact, lightweight, and durable.
  • Very high intensity outputs.
  • Superior product life span – up to 20,000 working hours.
  • No replacement parts required.
  • Can be used in hand held applications or mounted for production lines.
  • Suitable for working with all types of substrates.
  • Available in different wavelengths including 365nm and 395nm.



Circular Spot Serial No.  ISHL02 ISHL03 ISHL04 ISHL05
  Spot distance 2mm 3mm 4mm 5mm
  Suggested distance 8mm 10mm 14mm 16mm
  Serial No. ISHL06 ISHL08 ISHL10 ISHL12
  Spot size 6mm 8mm 10mm 12mm
  Suggested distance 17mm 27mm 25mm 25mm
  Serial No. ISHL15
  Spot size 15mm
  Sugested distance 35mm
Linear Spot Serial No. ISHL15S SIHL20S
  Spot size 3-15mm 5-20mm
  Suggested distance 11m 17mm
Side Spot Serial No. ISHL06SV ISHL08SV ISHL10SV
  Spot size 6mm 8mm 10mm
  Suggested distance 5mm 14mm 12mm



Contact us now for full specification details –
